Underground Downspout Drain Installation in Western NC

Uncontrolled roof water is the primary threat to mountain home foundations across the Blue Ridge. During heavy summer storms or rapid winter snowmelts, a single roof run can discharge hundreds of gallons of water directly against your foundation wall or crawlspace vents. At W.P.E.S. LLC, our complete underground downspout drainage systems capture roof runoff directly at the downspout base and transport it safely through rigid, buried piping to positive downhill discharge points away from your home.

Our turnkey sub-surface drainage installation scope delivers comprehensive perimeter protection for properties in Elk Park, Banner Elk, Boone, Blowing Rock, and Linville:

• Precision excavation and laser-calibrated trenching establishing a consistent minimum slope of 1/4-inch drop per foot toward daylight discharge. • Heavy-duty Schedule 40 or smooth-wall SDR 35 rigid PVC piping (4-inch or 6-inch diameter) engineered to withstand soil shifting and avoid crushing. • In-line leaf and debris filter adapters installed at downspout transitions with removable clean-out access caps for effortless maintenance. • Professional trench bedding in washed drain stone to ensure long-term stability and prevent settling or pipe shearing under freeze-thaw pressure. • Spring-loaded pop-up emitter discharge hubs bedded in gravel sumps or reinforced riprap daylight aprons to prevent yard erosion. • Full lawn restoration, including backfilling, mechanical compaction, topsoil grading, and magnetic nail/screw sweeps across the entire work corridor.

Surface downspout extensions or splash blocks are rarely adequate for Western North Carolina's steep topography and torrential precipitation. Surface extensions wash out, trip pedestrians, get crushed by lawn equipment, and frequently freeze solid during High Country cold snaps.

Key indicators that your property urgently needs an engineered underground downspout drainage system include:

• Foundation Hydrostatic Pressure: Standing water pooling against foundation footings pushes through concrete block seams and poured walls, causing basement seepage and structural cracking. • Chronic Crawlspace Moisture: High relative humidity, mold blooms on floor joists, and damp insulation beneath living quarters caused by roof water soaking the soil perimeter. • Severe Yard Gullying & Topsoil Erosion: Concentrated downspout torrents carving deep ruts into sloped lawns, washing away mulch beds, and exposing tree root systems. • Winter Ice Hazards on Walkways: Surface runoff spilling across stone pathways, driveways, or patio steps, freezing into hazardous sheets of black ice at high altitudes. • Saturated Retaining Walls: Water accumulating behind timber or dry-stack stone retaining walls, creating surcharge pressure that can cause structural bowing or sudden wall collapse.

Step 1: Topographic Elevation Mapping & Laser Slope Calculation We walk your property perimeter to evaluate slope gradients, existing foundation grade lines, natural water flow vectors, and optimal daylight termination zones. Using laser levels, we establish exact invert elevations ensuring water flows rapidly downhill without pooling.

Step 2: Micro-Excavation & Mountain Rock Trenching Our crew excavates smooth trenches below the lawn surface. In rocky High Country terrain containing shale, quartz, and heavy red clay, we use dedicated trenching machinery and hand tools to achieve the proper burial depth without disturbing surrounding tree canopies or buried utility lines.

Step 3: Rigid Smooth-Wall PVC Piping Assembly We install continuous runs of rigid Schedule 40 or heavy-wall SDR 35 PVC pipe with solvent-welded watertight joints. Unlike flimsy corrugated pipe, smooth-wall interior PVC maximizes water velocity, prevents silt buildup, and easily withstands root intrusion.

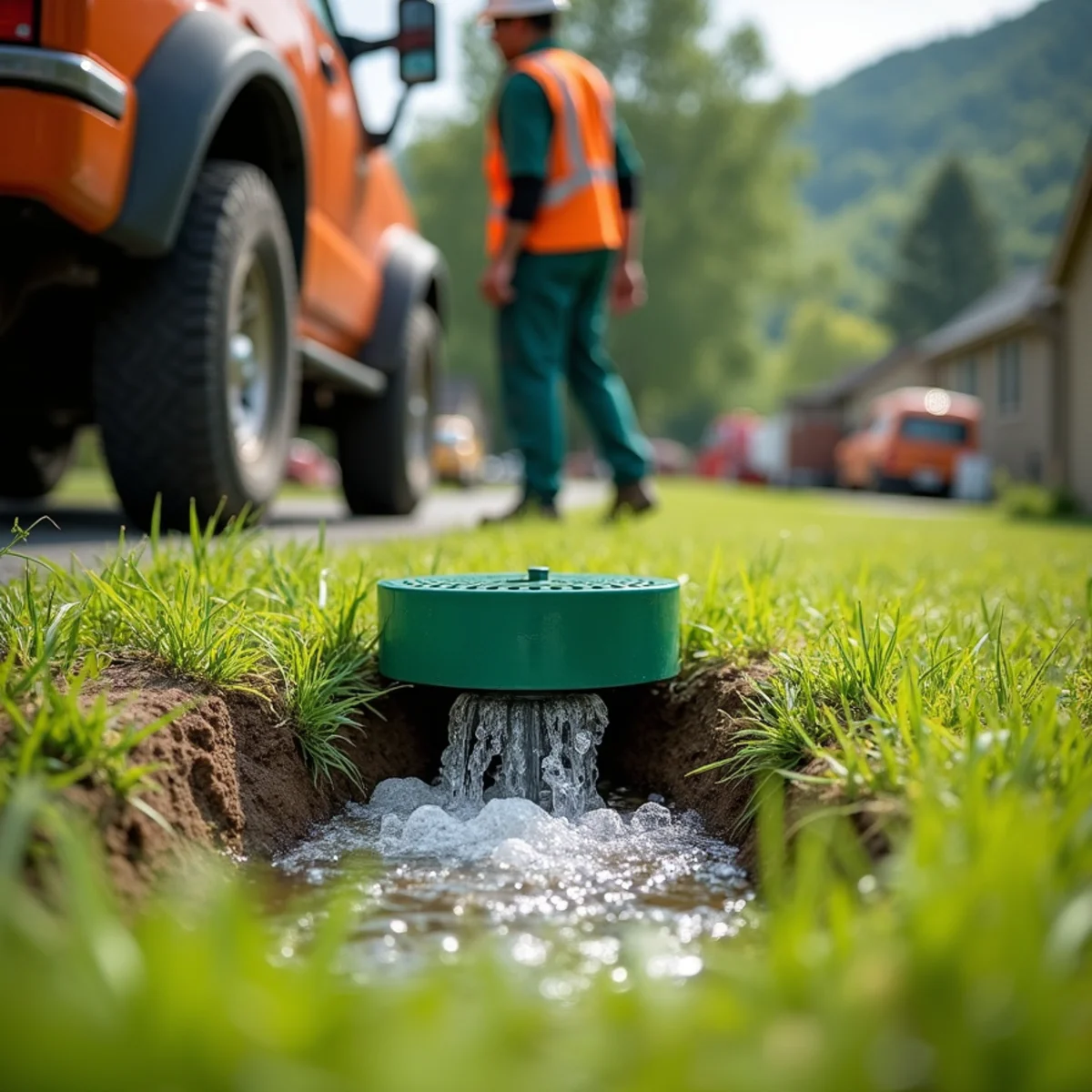

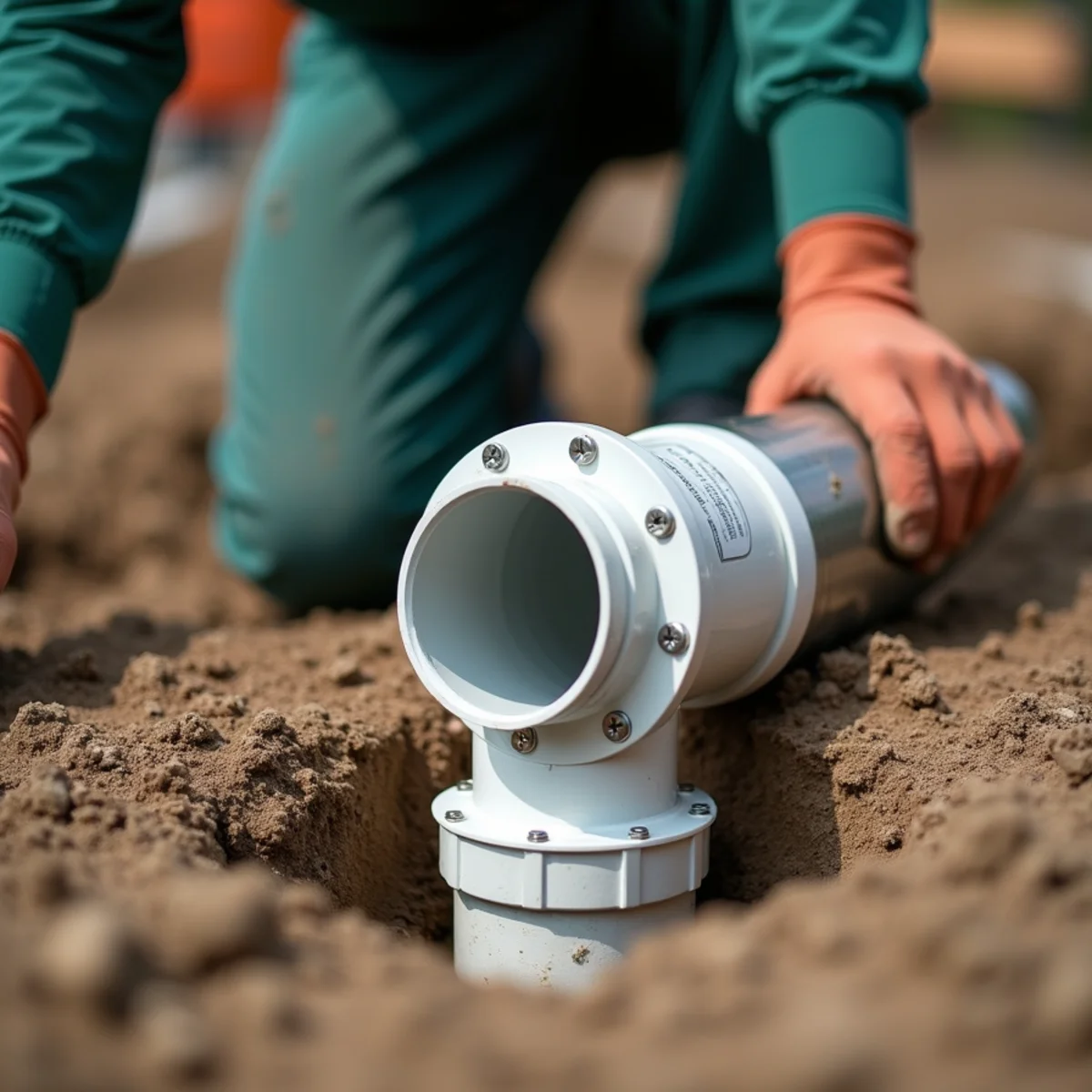

Step 4: Cleanout Adapters & Pop-Up Emitter Daylighting We install accessible threaded clean-outs at the base of every downspout connection for future inspection. At the downhill termination point, we install a high-flow pop-up emitter surrounded by washed river gravel or daylight the line onto a heavy riprap stone dissipation pad.

Step 5: Backfill Compaction, Sod Re-Installation & Flow Testing We backfill the trench in lifts, lightly compacting the soil to prevent future settlement troughs. We carefully relay the original sod or apply fresh grass seed and straw, then conduct a full water volume test to ensure instantaneous drainage.

Sub-surface drainage pricing is determined by property-specific geological and spatial variables rather than a simple flat rate. When preparing your detailed estimate, we evaluate:

• Linear Footage & Trench Distance: The total distance from downspout down to a safe daylight discharge area or slope apron. • Soil Composition & Subsurface Obstacles: High Country terrain often presents granite boulders, dense clay, or heavy tree root mats requiring specialized excavation equipment. • Pipe Specification: Selecting between 4-inch or 6-inch rigid Schedule 40 PVC or SDR 35 piping based on total roof surface area and storm surge calculations. • Discharge Complexity: Integrating pop-up emitters with gravel dry wells versus constructing stone riprap aprons on steep hillside embankments.

W.P.E.S. LLC installs all drainage systems in strict compliance with the North Carolina Residential Building Code Chapter 4 (Foundations and Drainage) and local county stormwater guidelines. In mountain jurisdictions, municipal codes strictly prohibit redirecting concentrated roof water onto neighboring properties or overloading public road ditches.

Our installations incorporate energy dissipation basins that protect fragile Blue Ridge trout streams and local watersheds from sediment runoff. Under N.C.G.S. § 87-1, exterior specialty trade work under $40,000 does not require a general contractor license; our business operates with full commercial general liability insurance and stringent jobsite safety practices.

Founded in 2020 by owner Wyatt Phelps, W.P.E.S. LLC is built on dependable mountain workmanship, clear client communication, and uncompromising attention to detail. We maintain a 5.0-star rating across verified Google reviews because we treat every property with the utmost care.

We provide itemized, transparent quotes, send detailed photo updates during each stage of excavation and burial for absentee second-home owners, and guarantee positive water evacuation away from your foundation. In addition, we proudly offer dedicated discounts for active military personnel, veterans, police officers, and first responders across our service area.
